Installing Veeam Backup and Replication v5

Shares


Note: This is the brand new release of Veeam backup and replication v5 which was just release last month. You can check out the product web page here. I’am using the following build veeam_backup_5.0.0.179_x64. Before beginning please download and install from the Microsoft website KB968930 Without this patch we can not install the Veeam powershell option as you will see in the following steps.

1. Double click the setup exe for your flavour of operating system, x86 or x64

Installing Veeam Backup and Replication v5

2. The installation wizard will begin. Veeam suggests a minimum of 4 cpu’s or cores, as my virtual machine server only has 2 cpu’s I’am presented with the following warning. If your system contains 4 or more cpu’s you will not see this warning and can continue to step 3. Click Yes.

Installing Veeam Backup and Replication v5

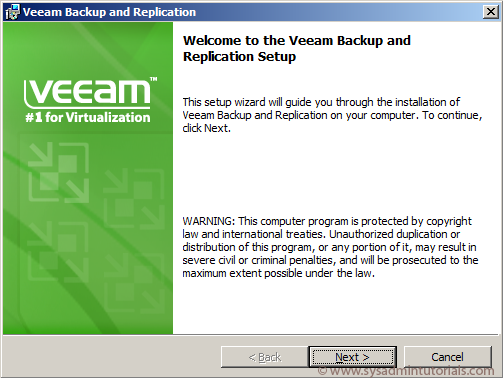

3. Welcome message for Veeam Backup and Replication Setup. Click Next.

Installing Veeam Backup and Replication v5

4. Select I accept for the License Agreement and click Next.

Installing Veeam Backup and Replication v5

5. The install wizard now prompts you for your Veeam license file.

Installing Veeam Backup and Replication v5

6. Click Browse and select your Veeam license key file that you received when you purchased the product. Or if you are trialing the product you would of received the license file in your email.

Installing Veeam Backup and Replication v5

7. Enable the PowerShell Snap-In and click Next. If you receive an error about needing to install Microsoft Patch KB968930, please follow the link at the beginning of this page under Note.

Installing Veeam Backup and Replication v5

8. I will select to create a new SQL Server Instance for this installation, however if you have an existing SQL server that you would like to use, simply select the second option and fill in all the relevant information according to your database setup.

Installing Veeam Backup and Replication v5

9. As I have a basic lab setup I will use the administrator account for the service settings. However I recommend that you create a dedicated Veeam service account. Enter in the username and password. Verify that the suggested port is not in use, otherwise change the port number. Click Next.

Installing Veeam Backup and Replication v5

10. Select the location for both the Guest File System Catalog and vPower NFS Root Folder. Veeam recommend you have 100GB of free disk space available for recovered Virtual Machines. Click Next.

Installing Veeam Backup and Replication v5

11. Click Install to begin the installation.

Installing Veeam Backup and Replication v5

12. After a few minutes the installation will be complete. Click Finish.

Installing Veeam Backup and Replication v5

Disclaimer:
All the tutorials included on this site are performed in a lab environment to simulate a real world production scenario. As everything is done to provide the most accurate steps to date, we take no responsibility if you implement any of these steps in a production environment.

  • Pingback: Tweets that mention Installing Veeam Backup and Replication v5 | Sysadmin Tutorials -- Topsy.com()

  • Alok

    What is Guest File System Catalog ?

    • It is where the backup catalog for the VM’s are stored. During a restore the catalog most probably will be referenced, also with backup explorer you are able to search through the catalog

  • Nilesh

    where to install veenam backup ,is it in vcenter as a VM or physical server ?

    • Install it on a separate server

      • BR

        Install in a separate physical or virtual server?  Can it be installed on a spare physical server acting as a backup domain controller?

        • Ramon Long

          It is not a good idea to install any applications on a Domain Controller due to the possibility of corrupting your domain catalog.  However, in a pinch, you might be able to get away with installing it on a Read Only Domain Controller.  Still, I wouldn’t recommend it, and it certainly is not a best practice.

  • Ray

    so it sounds like the BEST PRACTICE is to install VEEAM on a physical server which has direct SAN access to the SAN network infrastructure, correct?

    And, also install VMWare vCenter Server on the same server as well?

    I have a quad core i7 with Windows server 2008 r2 I could use for this OR a VM w/ 4 cores. Each w/ 16GB memory or the VM could be configured up to 32GB.

    To get direct SAN access, I would install a second LAN card and configure and physically connect to same switches as the SAN and VMWare hosts.

    Is that the best way to set it up?

    • Hi Ray, one of the options is definately direct SAN access if you choose this backup method. In regards to speed, it’s probably the fastest as opposed to others. I would install Veeam on a seperate server, i’m not a fan of installing multiple services on the same box.
