This tutorial will provide you with the necessary steps to install and configure Check Point Identity Awareness Software Blade along with Microsoft Active Directory.

Setting up Check Point R75 Identity Awareness

1. We will be configuring Check Point Identity Awareness with Application Control. You must of enabled Application Control to complete this tutorial successfully. Log into Check Point SmartDashboard and edit your gateway object.


Check Point R75 Identity Awareness

2. Select the Identity Awareness Software Blade and the Identity Awareness Configuration wizard will begin. Select AD Query and click Next.


Check Point R75 Identity Awareness

3. Select your Domain Name and enter in a username and password that has Domain Admin access to your Active Directory.


Check Point R75 Identity Awareness

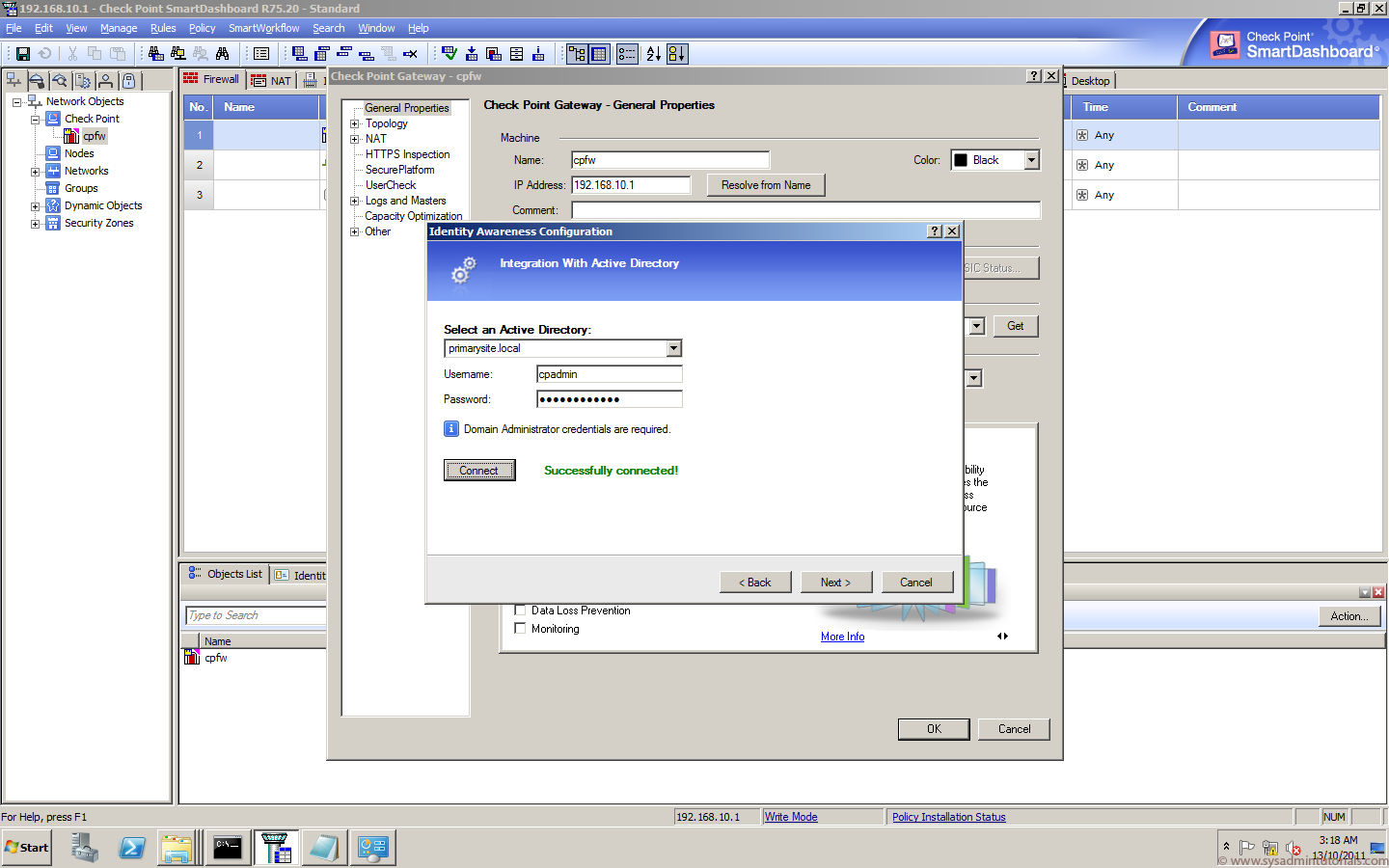

4. Click Connect. You will see a Successfully Connected as displayed below. Click Next.


Check Point R75 Identity Awareness

5. A notification window is displayed that shows your Check Point Identity Awareness Software Blade is Now Active. Click Finish.


Check Point R75 Identity Awareness

6. Edit your gateway again and under Software Blades. Select the management tab.


Check Point R75 Identity Awareness

7. Below Logging & Status select Identity Awareness. This will add identity information to logs. Click Next.


Check Point R75 Identity Awareness

8. The information will be pre-populated from step 4 above.


Check Point R75 Identity Awareness

9. Click Connect. The connection is successful. Click Next.


Check Point R75 Identity Awareness

10. Logs for Check Point Identity Awareness is Now Active. Click Finish.


Check Point R75 Identity Awareness

11. Click on the Application and URL Filtering Tab. In rule 2 in the image below I’m currently blocking facebook from anyone coming from a source IP address of Internal_Lan (192.168.10.x/24). I will now change this to use Identity Awareness. Right click on the source box at rule number 2 and select Add User/Access Rule. I’m going to be blocking an Active Directory user called user1. I’ll type in User1 in the Name field and then select the Users Tab. Click the green + sign which will bring up your Active Directory. I will select user1 and click Ok.


Check Point R75 Identity Awareness

12. You can now see that for rule 2 my source is user1. When user1 tries to browse to facebook he will be blocked.


Check Point R75 Identity Awareness

13. Install the new policy to apply the Identity Awareness settings and rules.


Check Point R75 Identity Awareness

14. If we open up SmartEvent Intro, we can see some real interesting statistics on URL’s and Application tied in with Check Point Identity Awareness.


Check Point R75 Identity Awareness

15. Click on the Charts Tab, and you will be presented with a nice pie graph of the amount of time spent on each site.


Check Point R75 Identity Awareness
